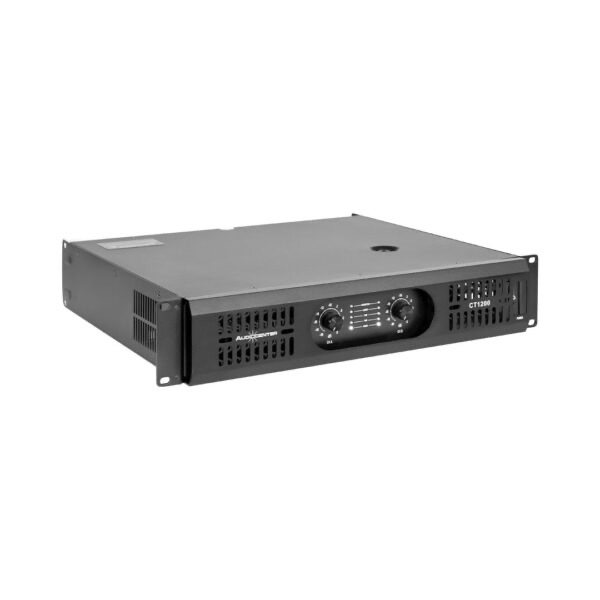

AudioCenter Ct1200 Amplifier

Power Amplifier – 2 Channel

The CT1200 amplifier delivers high-performance audio for venues like pubs and live events, offering selectable input sensitivity, speakon/binding post outputs, and multiple operating modes. Advanced protection systems, including soft-start, DC, thermal, and short-circuit safeguards, ensure reliability. Class H amplification minimises distortion, while a 120Hz VLTM crossover enhances sound for subwoofers and compact setups. A tunnel-style heatsink and dual fans provide efficient cooling, ensuring long-term durability with rigorously tested components.

Features

Elegant appearance
Comprehensive protection for reliability
Dynamic sound quality
Exceptional value for money
Modular and ultra-compact design
Easy transport and installation

Specifications

Output power: 8Ω Stereo – 2 x 400W
4Ω Stereo – 2 x 600W
8Ω Bridge – 1 x 1200W
A-guard protection: DC protection
Short Circuit
Overheat protection
Limiter protection
Output overload protection
Soft startup protection
Working mode: Stereo, Parallel, Bridge
Crossover (High pass / Low pass): 120Hz, -3dB
Connectors: Input – Male XLR & Female XLR
Output – Speakon + binding Post
Input impedance: Balanced – ≥ 20kΩ
Unbalanced –  ≥ 10kΩ
Frequency response (1W 8Ω bridge): 20Hz – 20kHz (± 1dB)
Sensitivity: 0.775V / 1.0V / 1.44V
Maximum input voltage: 16dBu
Crosstalk (1kHz, rated power 8Ω): ≥ 60dB
Signal-to-noise ratio (A-weighted, rated power 8Ω): ≥ 100dB
Damping factor (1kHz & 8Ω): ≥ 300
Intermodulation distortion (60Hz : 7Hz = 4:1, 8Ω): ≤ 0.1%
Total harmonic distortion (8Ω & 20Hz – 20kHz, half power): ≤ 0.05%
Output circuitry: Class H
Rack space: 2U
Cooling system: Back to front venting, mandatory cooling
Dimensions (W x H x D): 483 × 88 × 369mm
Net weight: 12.5kg
