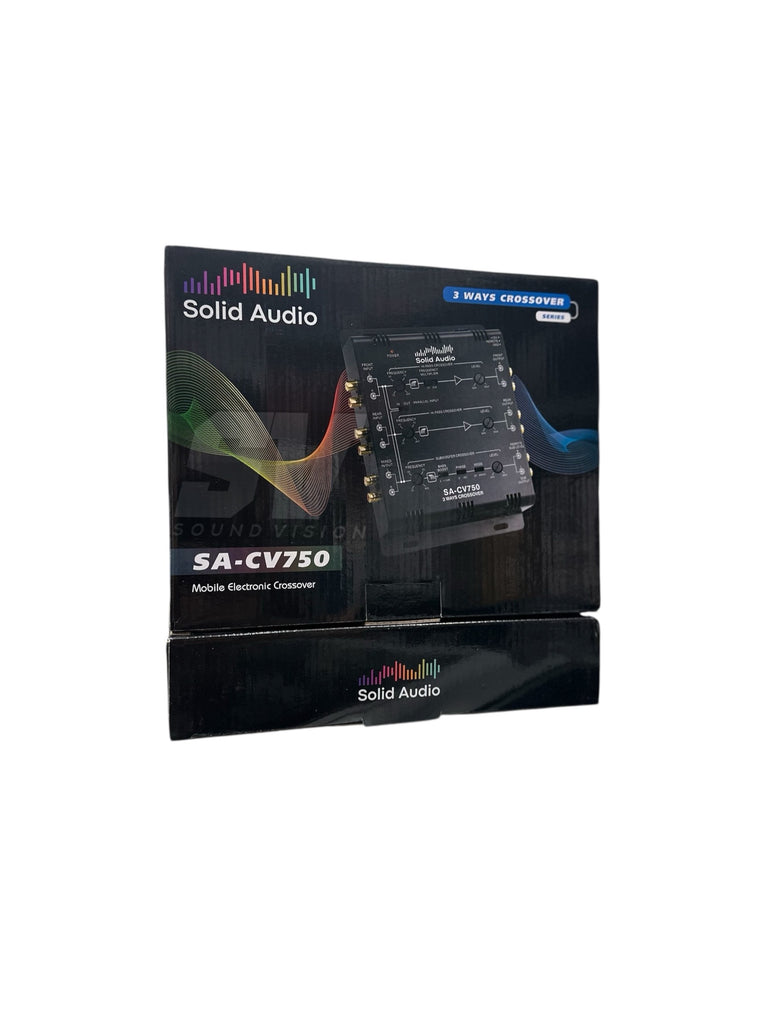

Solid Audio 3-Way Crossover

Power source: 14.4V

Input current: 0.5Amp max

Distortion: 0.01%

Frequency response: 10Hz-3KHz -3dB

S/N ratio [A weighted]: >95dB

Separation: 60dB

Crossover frequencies[continuously variabe]:

Front High-pass:

[X1]: 32-400Hz

[X20]: 640-8KHz

Rear High-pass: 32-400Hz

Subwoofer: 32-400Hz

Crossover slope rate:

Low-Pass: 18dB

High-pass: 12dB

Subwoofer boost: Single octave

Intput impedance: 20K ohms

Output impedance: 100 ohms

Output gain: 1:2 +6dB

Output voltage level: 5V

Dimensions: 144 x 194 x 43 MM
